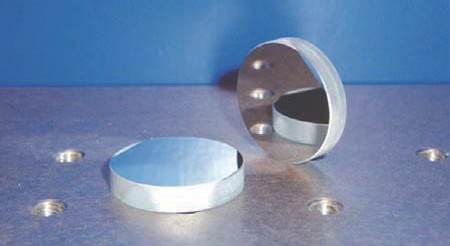

Flat Metallic Mirrors




Flat Metallic Mirrors serve diverse applications, over a wide spectral range. They are unaffected by polarization and angle of incidence and supply a continuing phase shift. This makes them suitable for ultra short-pulse applications and for applications that require a continuing coefficient of thermal expansion between the Optical Mirror and the mount.

SK-Advanced offers a range of flat metallic mirrors for diverse applications. Our mirrors are provided as round as well as square mirrors with aluminum (Al), silver (Ag) and gold (Au) coatings.

Specifications:
Material N-BK7
Dimension  Tolerance +0/-0.1mm
Thickness  Tolerance ±0.1mm
Surface Accuracy λ/4@632.8nm
Surface Quality S1:40-20S2:FineGround
Parallelism <1 arc min
Clear Aperture >90%
Bevelling <0.2X45°
Coating As Following



You may also be interested in our Optical Mounts category. Find the Mirror mount that completes your optical table.


Round Al coating Flat Metallic Mirrors

No. Dia(mm) T(mm)
UW00603RK-Al 6.00 3.00
UW00903RK-Al 9.00 3.00
UW01205RK-Al 12.70 5.00
UW01805RK-Al 18.00 5.00
UW02505RK-Al 25.40 5.00
UW03005RK-Al 30.00 5.00
UW04008RK-Al 40.00 8.00
UW05008RK-Al 50.80 8.00

Square Al coating Flat Metallic Mirrors
No. H=L(mm) T(mm)
UW00603SK-Al 6.00 3.00
UW00903SK-Al 9.00 3.00
UW01205SK-Al 12.70 5.00
UW01805SK-Al 18.00 5.00
UW02505SK-Al 25.40 5.00
UW03005SK-Al 30.00 5.00
UW04008SK-Al 40.00 8.00
UW05008SK-Al 50.80 8.00

(400nm-700nm)















































































Round Ag coating Flat Metallic Mirrors
No. Dia(mm) T(mm)
UW00603RK-Ag 6.00 3.00
UW00903RK-Ag 9.00 3.00
UW01205RK-Ag 12.70 5.00
UW01805RK-Ag 18.00 5.00
UW02505RK-Ag 25.40 5.00
UW03005RK-Ag 30.00 5.00
UW04008RK-Ag 40.00 8.00
UW05008RK-Ag 50.80 8.00

Square Ag coating Flat Metallic Mirrors
No. H=L(mm) T(mm)
UW00603SK-Ag 6.00 3.00
UW00903SK-Ag 9.00 3.00
UW01205SK-Ag 12.70 5.00
UW01805SK-Ag 18.00 5.00
UW02505SK-Ag 25.40 5.00
UW03005SK-Ag 30.00 5.00
UW04008SK-Ag 40.00 8.00
UW05008SK-Ag 50.80 8.00

 (800nm-2000nm)







Round Au coating Flat Metallic Mirrors
No. Dia(mm) T(mm)
UW00603RK-Au 6.00 3.00
UW00903RK-Au 9.00 3.00
UW01205RK-Au 12.70 5.00
UW01805RK-Au 18.00 5.00
UW02505RK-Au 25.40 5.00
UW03005RK-Au 30.00 5.00
UW04008RK-Au 40.00 8.00
UW05008RK-Au 50.80 8.00

Square Au coating Flat Metallic Mirrors
No. H=L(mm) T(mm)
UW00603SK-Au 6.00 3.00
UW00903SK-Au 9.00 3.00
UW01205SK-Au 12.70 5.00
UW01805SK-Au 18.00 5.00
UW02505SK-Au 25.40 5.00
UW03005SK-Au 30.00 5.00
UW04008SK-Au 40.00 8.00
UW05008SK-Au 50.80 8.00

(8 μm - 12 μm)
